1/2 x 1/8 Inch Neodymium Rare Earth Countersunk Ring Magnets N42 (20 Pack)
$14.99
Buy More and Save up to 30%
| Quantity of Sets | Set Price | Discount |
|---|---|---|
| Buy 2 | $14.24/set | 5% Off |
| Buy 3 | $13.49/set | 10% Off |
| Buy 5 | $12.74/set | 15% Off |
| Buy 10 | $11.99/set | 20% Off |
| Buy 25 | $11.24/set | 25% Off |
| Buy 50 | $10.49/set | 30% Off |
Need more than 50 sets? Email us for a quote.
Magnet Specifications
Size
:
0.5 x 0.125 inch (Outer Diameter x Thickness)
Metric Size
:
12.7 x 3.175 mm
Countersunk Hole Size
:
0.25 x 0.125 Inches at 90°
Screw Size
:
#4
Grade
:
N42
Pull Force
:
5.7 lbs
Coating
:
Nickel-Copper-Nickel (Ni-Cu-Ni)
Magnetization
:
Axially - Pair
Material
:
Neodymium (NdFeB)
Tolerance
:
+/- 0.004 in
Max Operating Temperature
:
176 F
Part Number
:
M12X18X18CSDISCN42-20PK
Quantity Included
:
20 Countersunk Rings
Sold in Matched Pairs
Each set of countersunk ring magnets
includes 10pcs with the countersunk hole on the north pole, and 10pcs

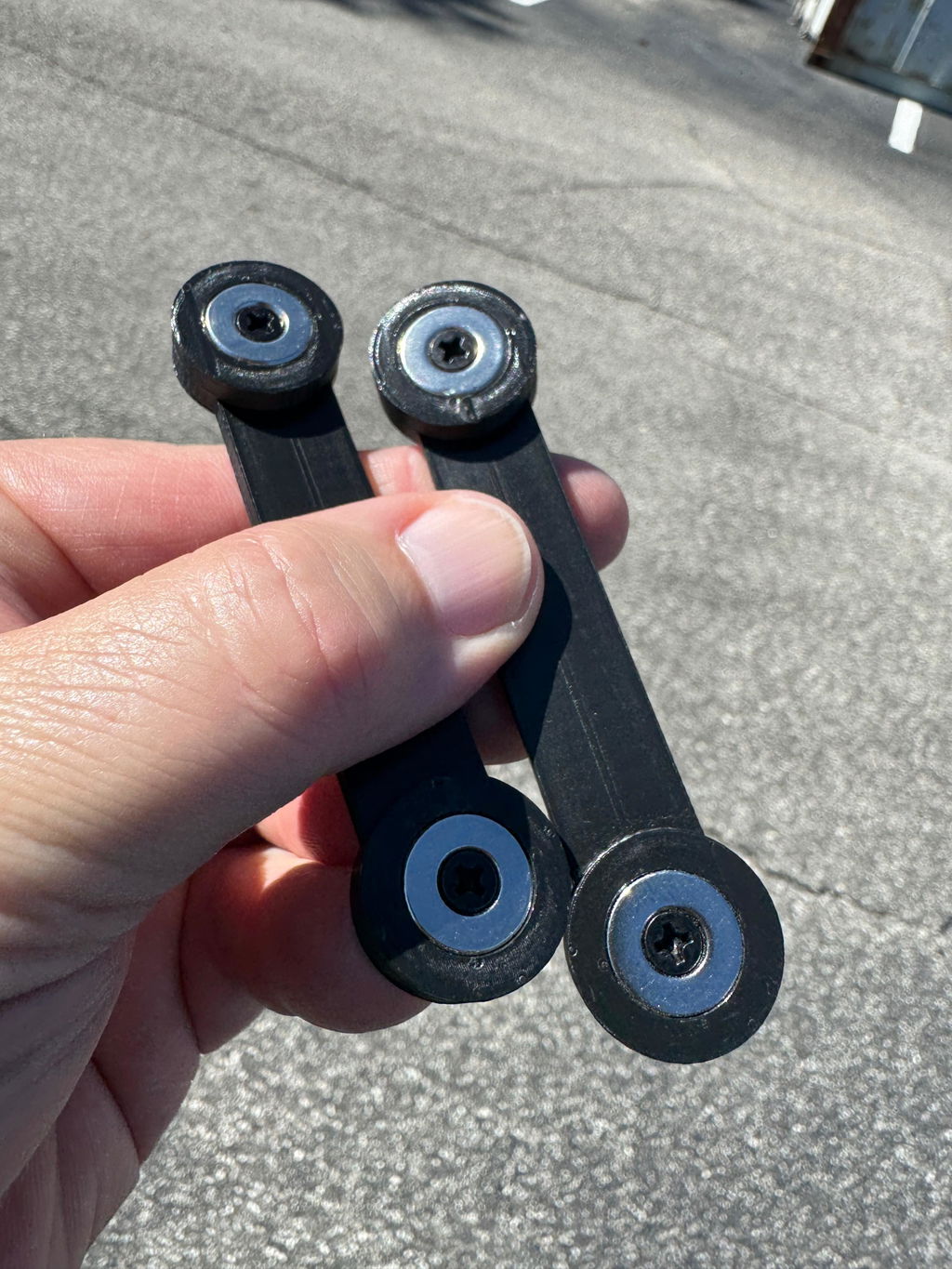

with the countersunk hole on the south pole. This allows you to pair them together to create magnetic latches,
fasteners, and other closure mechanisms. Both the north and south poles will be attracted and attach to anything metal.
If you need the magnets in a different configuration, please contact us.
