3/4 x 1/4 Inch Neodymium Rare Earth Countersunk Ring Magnets N52 with Waterproof Black Plastic Coating (8 Pack)

6.1 lbs Pull Force

3/4 x 1/4 Inch Neodymium Rare Earth Countersunk Ring Magnets N52 with Waterproof Black Plastic Coating (8 Pack)

$20.99
  • $ 20.99 USD



Buy More and Save up to 30%
Quantity of Packs Price per Pack Discount
Buy 2 $19.94/pack 5% Off
Buy 3 $18.89/pack 10% Off
Buy 5 $17.84/pack 15% Off
Buy 10 $16.79/pack 20% Off
Buy 25 $15.74/pack 25% Off
Buy 50 $14.69/pack 30% Off
Need more than 50 sets? Email us for a quote.



Magnet Specifications

Size : 0.75 x 0.25 Inch (Outer Diameter x Thickness)
Metric Size : 19.05 x 6.35 mm (Outer Diameter x Thickness)
Countersunk Hole Size : 0.295 x 0.17 Inches at 82°
Screw Size : #6
Material Grade : N52
Pull Force : 6.1 lbs
Coating : Zinc (Zn) + Plastic Coating (Zinc-Plastic)
Magnetization Direction : Axially - Pair
Magnet Material : Sintered Neodymium (NdFeb)
Tolerance : +/- 0.004 Inches
Maximum Operating Temperature : 80°C / 176°F
Flux Density : 14,800 Gauss
Part Number : DCS34X14N52-BP-8PK
Quantity Included : 8 Countersunk Ring Magnets


Sold in Matched Pairs
Each set of countersunk ring magnets includes 4pcs with the countersunk hole on the north pole, and 4pcs with the countersunk hole on the south pole. This allows you to pair them together to create magnetic latches, fasteners, and other closure mechanisms. Both the north and south poles will be attracted and attach to anything metal.

If you need the magnets in a different configuration, please contact us.


Drill Torque Information
It is very easy to overtighten and break/crack countersunk neodymium magnets when screwing them in place. We recommend hand tightening when possible. If using a drill, start with a low torque setting and work your way up.


Durable Plastic Coating

These high quality magnets are protected by a tough layer of plastic. The finished dimensions, including the plastic coating, are 3/4 x 1/4 inch (Outer Diameter x Thickness). These magnets can be slammed together repeatedly without causing any damage. Furthermore, they are completely waterproof and weatherproof.

Interested in more plastic coated magnets? Shop our full selection.


Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Raymond S. (Myrtle Beach, United States)
Cal was most knowledgable and explained the answers to all my questions about magnets. Cal deserv...

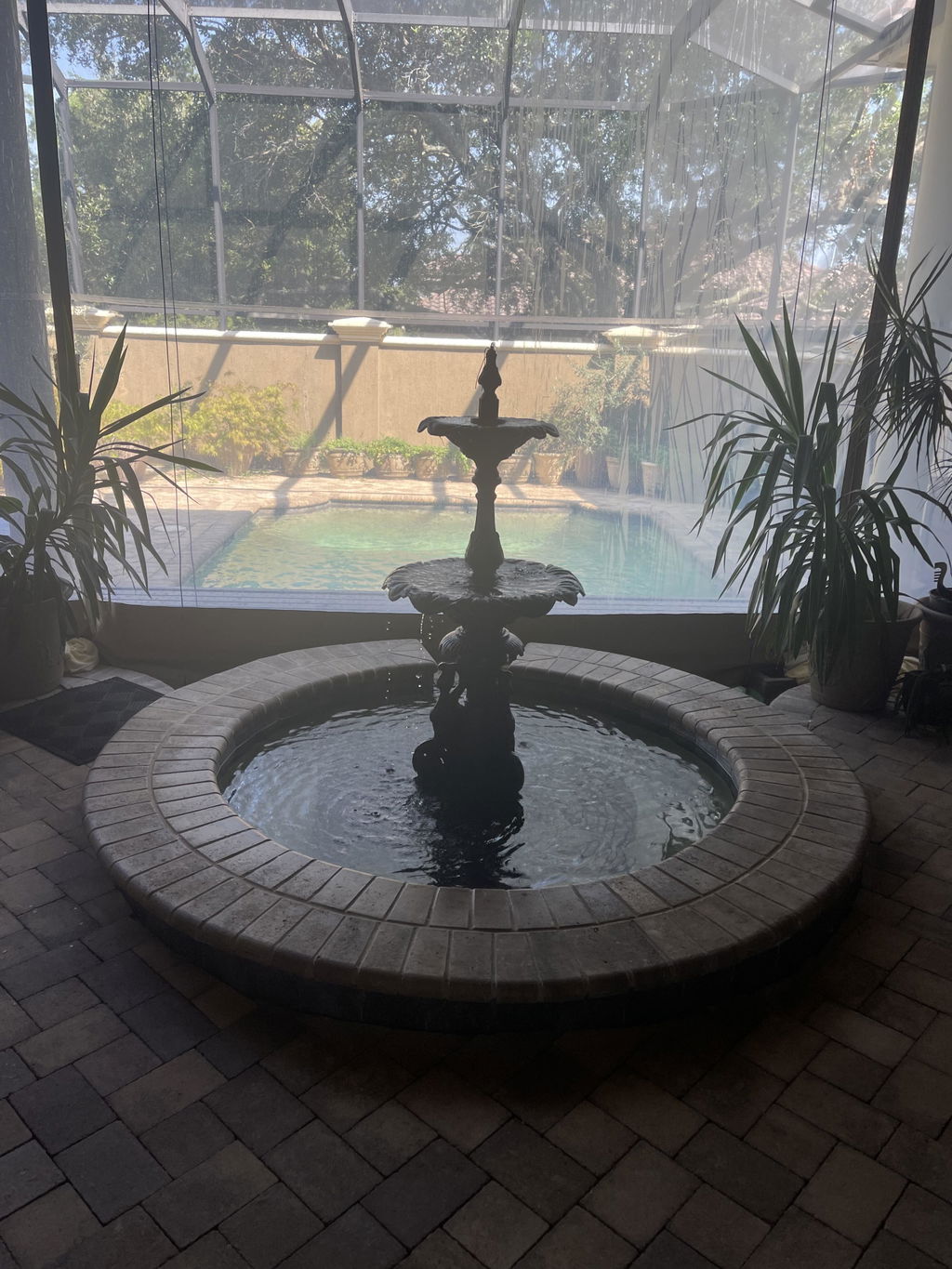

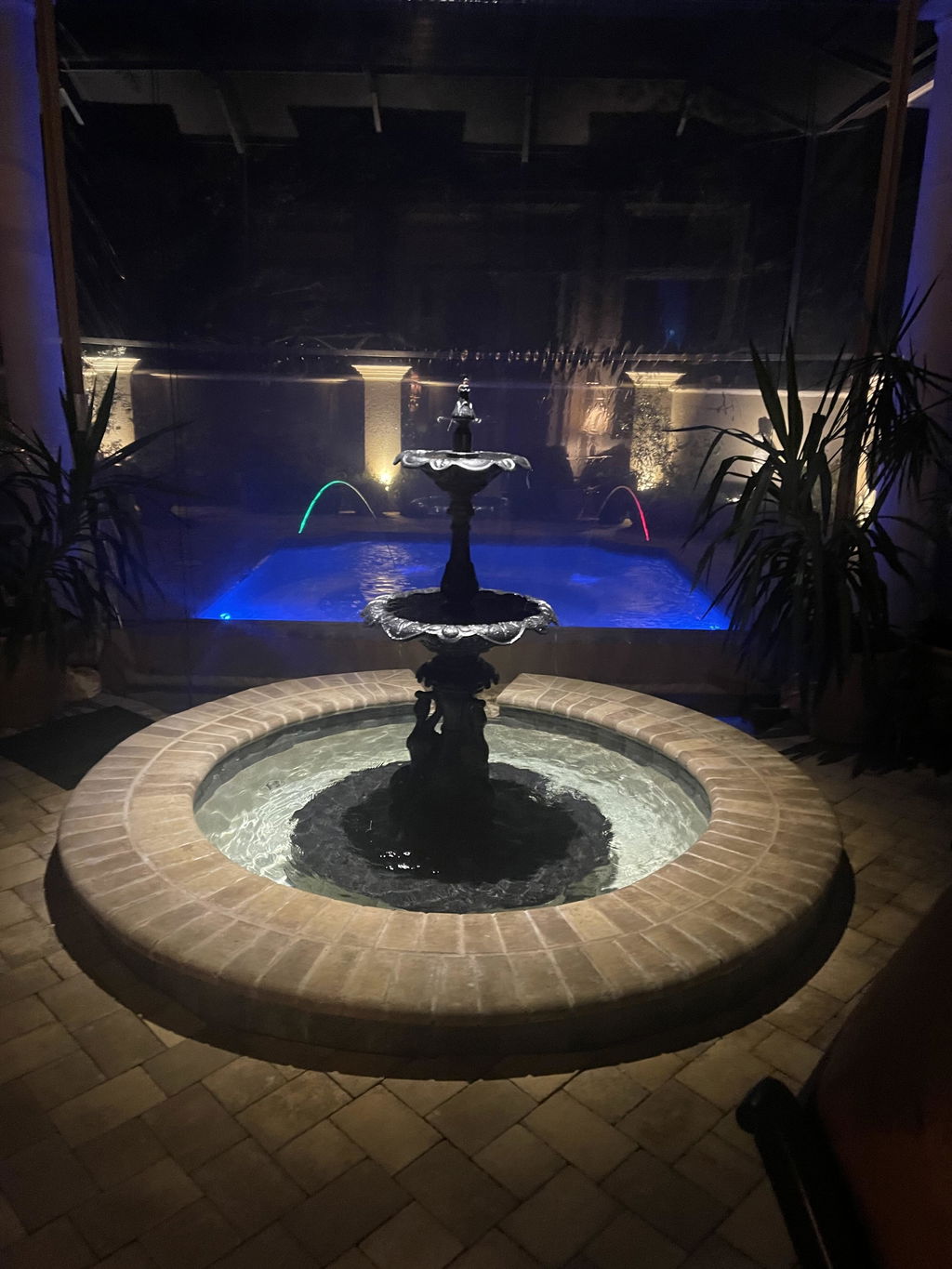

Magnets were used as hangers for underwater lights in a cast iron fountain.

S
S. S. (Las Vegas, United States)
Excellent, but I ordered too small, need larger magnets.

To attach portable tool to sheet metal. I need larger.

J
John h. (Malden, United States)
John House

Awesome Company service and quality is first rate! Would not hesitate to order again and would highly recommend Total Element!
