3/4 x 1/4 Inch Neodymium Rare Earth Countersunk Ring Magnets N52 with Waterproof Black Plastic Coating (8 Pack)
3/4 x 1/4 Inch Neodymium Rare Earth Countersunk Ring Magnets N52 with Waterproof Black Plastic Coating (8 Pack)
| Quantity of Packs | Price per Pack | Discount |
|---|---|---|
| Buy 2 | $21.18/pack | 5% Off |
| Buy 3 | $20.06/pack | 10% Off |
| Buy 5 | $18.95/pack | 15% Off |
| Buy 10 | $17.83/pack | 20% Off |
| Buy 25 | $16.72/pack | 25% Off |
| Buy 50 | $15.60/pack | 30% Off |
Magnet Specifications
| Imperial Size | 0.75 x 0.25 Inch (Outer Diameter x Thickness) |
|---|---|
| Metric Size | 19.05 x 6.35 mm (Outer Diameter x Thickness) |
| Countersunk Hole Size | 0.295 x 0.17 Inches at 82° |
| Screw Size | #6 |
| Material Grade | N52 |
| Pull Force | 6.1 lbs |
| Coating | Zinc (Zn) + Plastic Coating (Zinc-Plastic) |
| Magnetization Direction | Axially - Pair |
| Magnet Material | Sintered Neodymium (NdFeB) |
| Tolerance | +/- 0.004 Inches |
| Max Operating Temperature | 80°C / 176°F |
| Flux Density (Br) | 14,800 Gauss |
| Part Number | DCS34X14N52-BP-8PK |
| Quantity Included | 8 Countersunk Ring Magnets |
Produced in an ISO 9001 Facility
Manufactured to Meet RoHS & REACH Standards
Sold in Matched North/South Pairs
Each set of countersunk ring magnets includes 4pcs with the countersunk hole on the north pole, and 4pcs with the countersunk hole on the south pole. This allows you to pair them together to create magnetic latches, fasteners, and other closure mechanisms. Both the north and south poles will be attracted and attach to ferromagnetic materials.
If you need the magnets in a different configuration, please contact us.
Torque Information
It is very easy to overtighten and break/crack countersunk neodymium magnets when screwing them in place. We recommend hand tightening when possible. If using a drill, start with a low torque setting and work your way up.
Durable Plastic Coating
These high quality magnets are protected by a tough layer of plastic. The finished dimensions, including the plastic coating, are 3/4 x 1/4 inch (Outer Diameter x Thickness). These magnets can be slammed together repeatedly without causing any damage. Furthermore, they are completely waterproof and weatherproof.
Interested in more plastic coated magnets? Shop our full selection.
Customer Reviews
Good magnets. I like the ABS coating. They are N52, so they are strong. Timely shipping.
These magnets were perfect. High quality. Reasonably priced. And free shipping! TotalElement is the best!

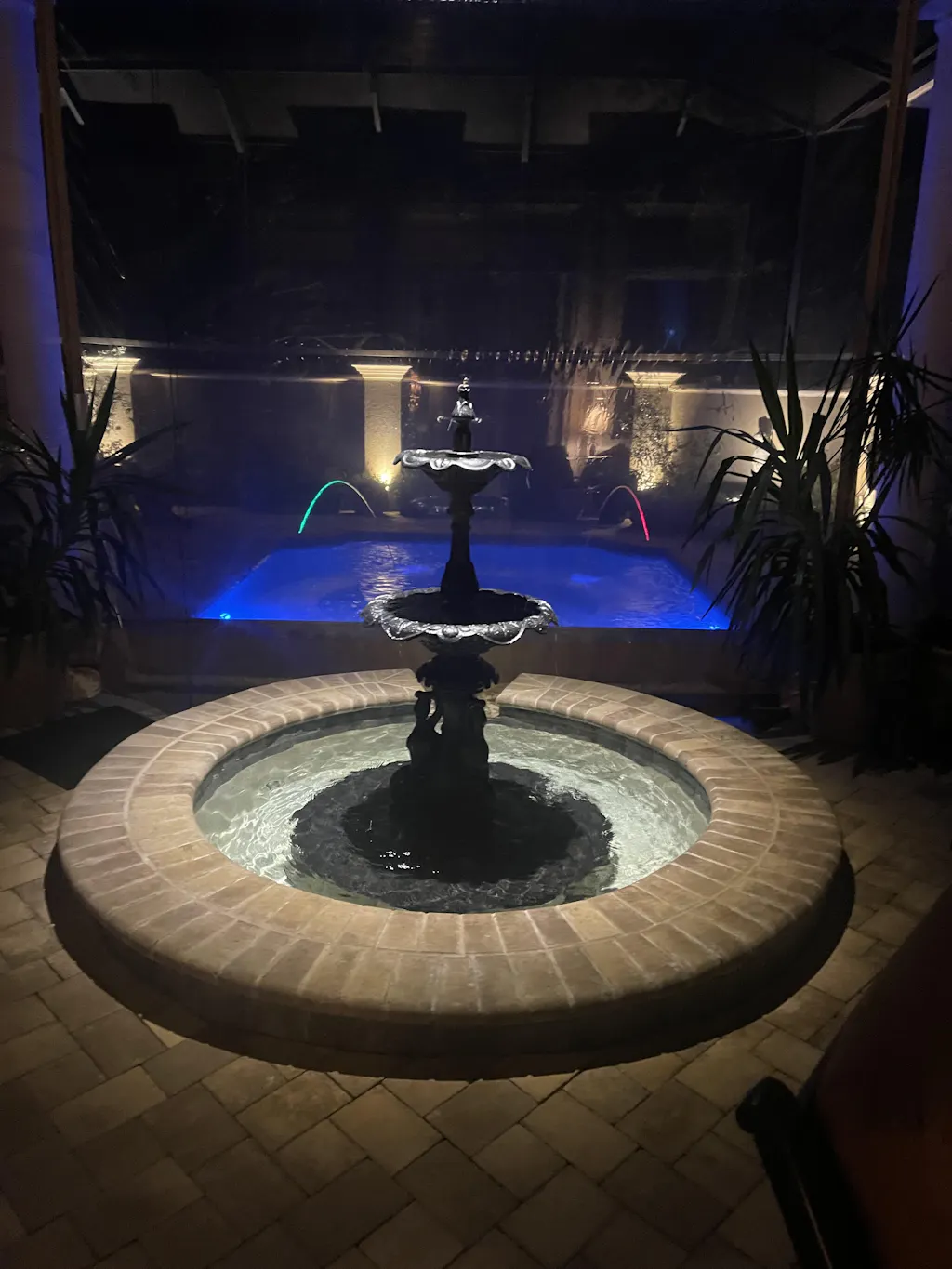

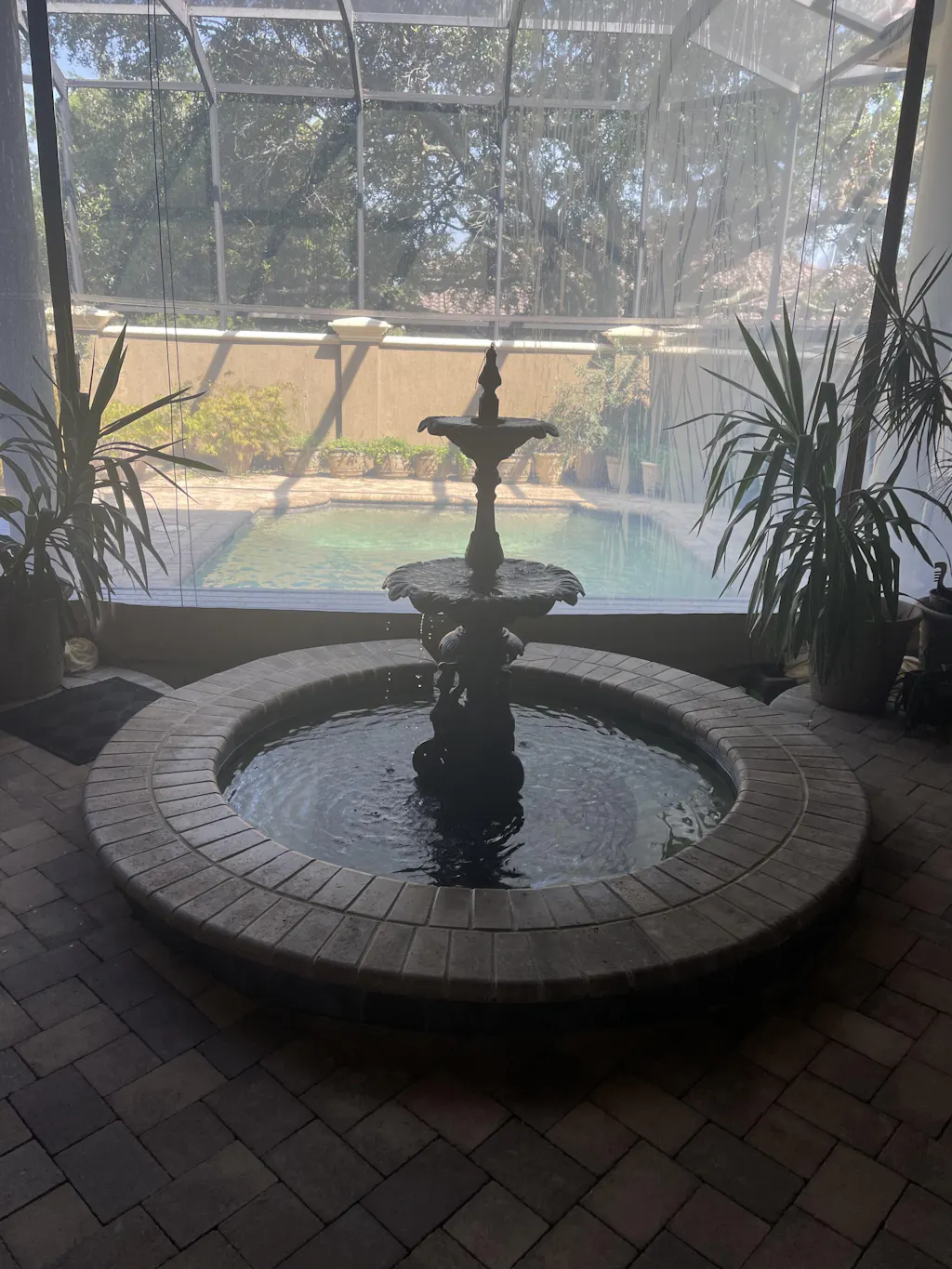

Magnets were used as hangers for underwater lights in a cast iron fountain.
To attach portable tool to sheet metal. I need larger.
Awesome Company service and quality is first rate! Would not hesitate to order again and would highly recommend Total Element!
