6 Inch Round Food Grade Neodymium Magnetic Grate Magnet Separator with Easy Clean Removable Magnets
6 Inch Round Food Grade Neodymium Magnetic Grate Magnet Separator with Easy Clean Removable Magnets
| Quantity | Price | Discount |
|---|---|---|
| Buy 2 | $1,139.12/ea | 5% Off |
| Buy 3 | $1,079.16/ea | 10% Off |
| Buy 5 | $1,019.21/ea | 15% Off |
| Buy 10 | $959.26/ea | 20% Off |
| Buy 25 | $899.30/ea | 25% Off |
| Buy 50 | $839.35/ea | 30% Off |
Magnet Specifications
| Imperial Size | 5.75 x 2 Inch |
|---|---|
| For Opening Diameter | 6 Inches |
| For Opening Shape | Round |
| Number of Magnetic Rods | 2 |
| Gauss per Rod | 12,000 Gauss |
| Pull Force per Rod | 12 lbs |
| Rod Diameter | 1 Inch |
| Spacing Between Rods | 1 Inch |
| Frame Height | 2 Inches |
| Frame Thickness | 0.18 Inch |
| Magnet Material | Sintered Neodymium (NdFeB) |
| Max Operating Temperature | 80°C / 176°F |
| Rod Material | 316 Stainless Steel (Food Grade) |
| Frame Material | 316 Stainless Steel (Food Grade) |
| Surface Finish (Ra) | Ra16 (Sanitary Finish) |
| Part Number | FR-6X2N50-EC |
| Quantity Included | 1 Magnet |
Manufactured in an ISO 9001 Certified Facility
Compliant with RoHS and REACH Standards
Magnet Description

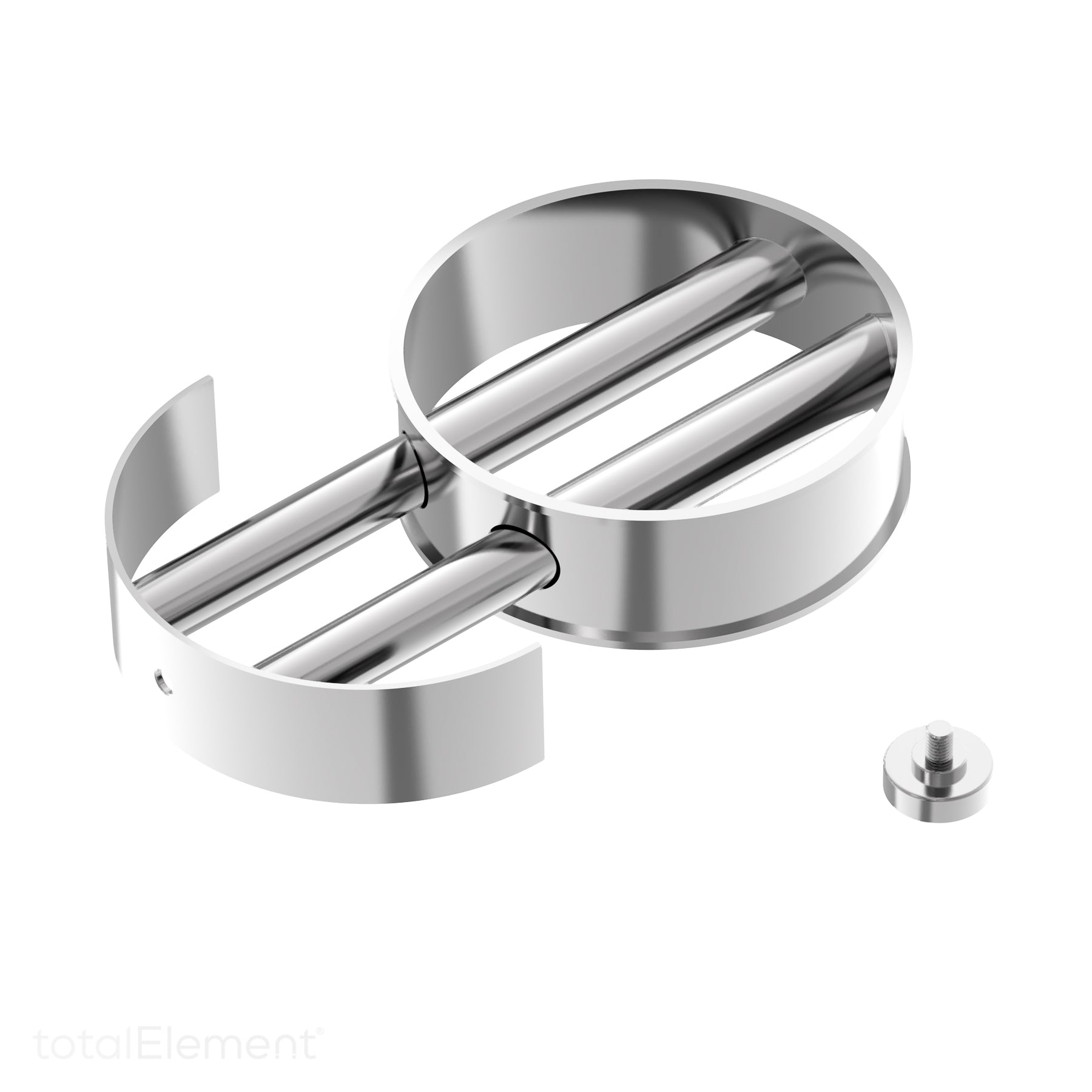

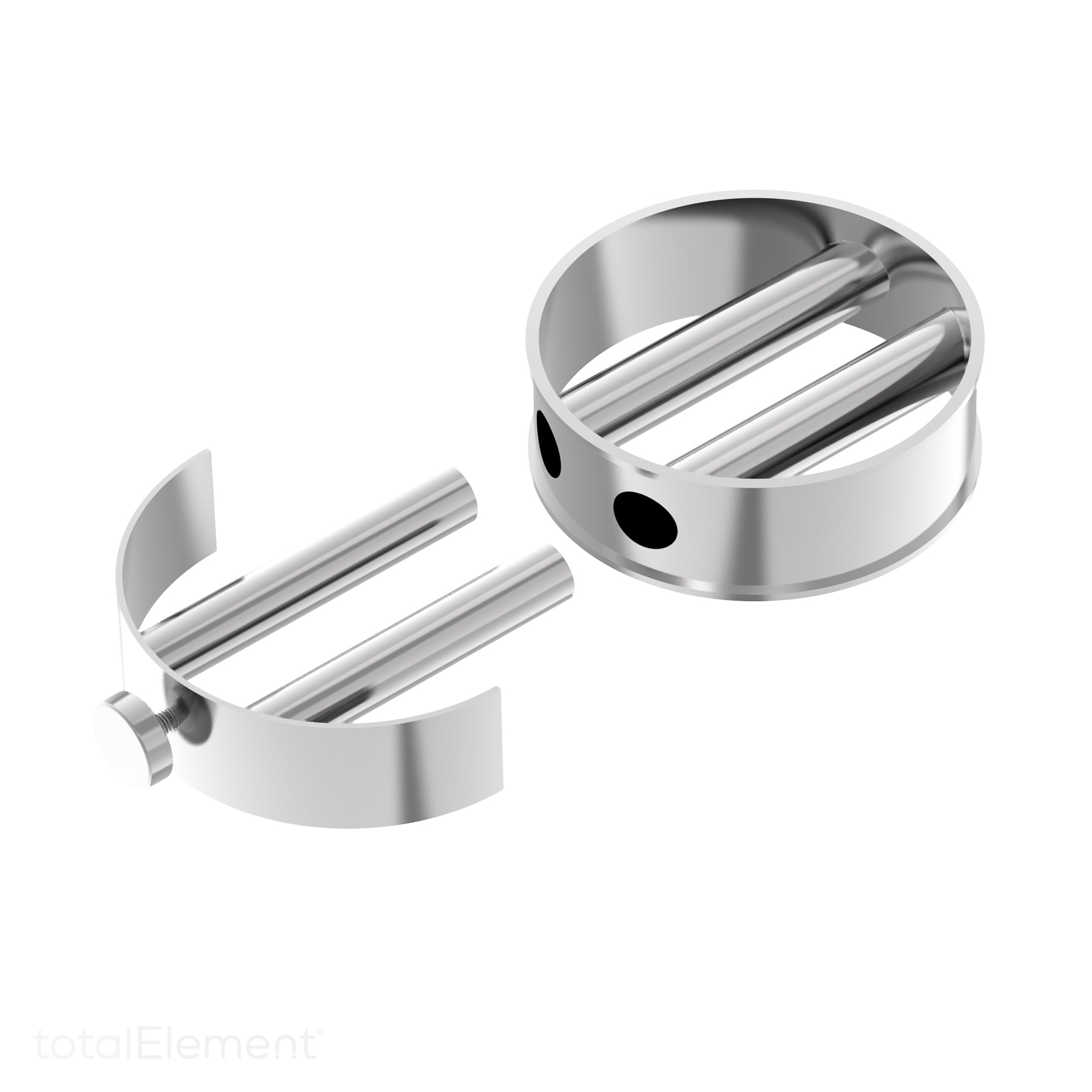

Thanks to their thoughtful design and removable magnets, these rare earth magnetic grate magnets make maintenance and cleaning a breeze. Simply pull the magnetic tubes out of the stainless steel frame, and the contamination and tramp metal will fall away. The cleaning process can be completed in seconds, making them ideal for 24/7 operations where downtime must be kept to a minimum.
The super strong neodymium magnets inside effectively extract metal and magnetic particles from food and sanitary materials as they flow through your gravity hoppers, chutes, and various components.
Constructed entirely from durable 316 stainless steel, these neodymium magnetic filter grates are impervious to the harsh cleaning agents commonly used in food plants. Their polished finish and seamless welding eliminate any potential hiding spots for bacteria, thus minimizing the risk of contamination.
Made with the strongest neodymium rare earth material, these super strong grate/hopper magnets feature 12,000 gauss per rod.
